AOC Fiber Cable - Pro ISL, Palisade Link, Cascade Link, Sentinel Link cable

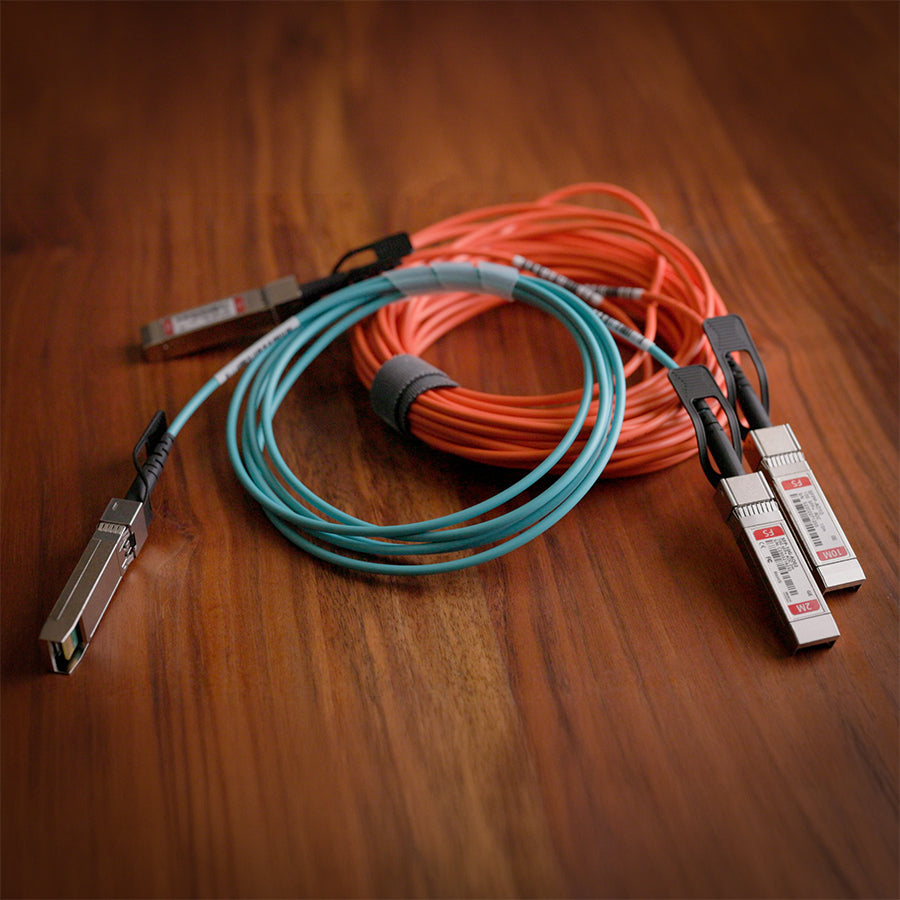

*** AOC CABLES COME IN VARIOUS COLORS - THE COLOR DOES NOT CHANGE THE PERFORMANCE OR FUNCTIONALITY OF THE CABLE, BUT THE COLOR YOU RECEIVE MAY BE DIFFERENT THEN DEPICTED IN THE IMAGES. ***

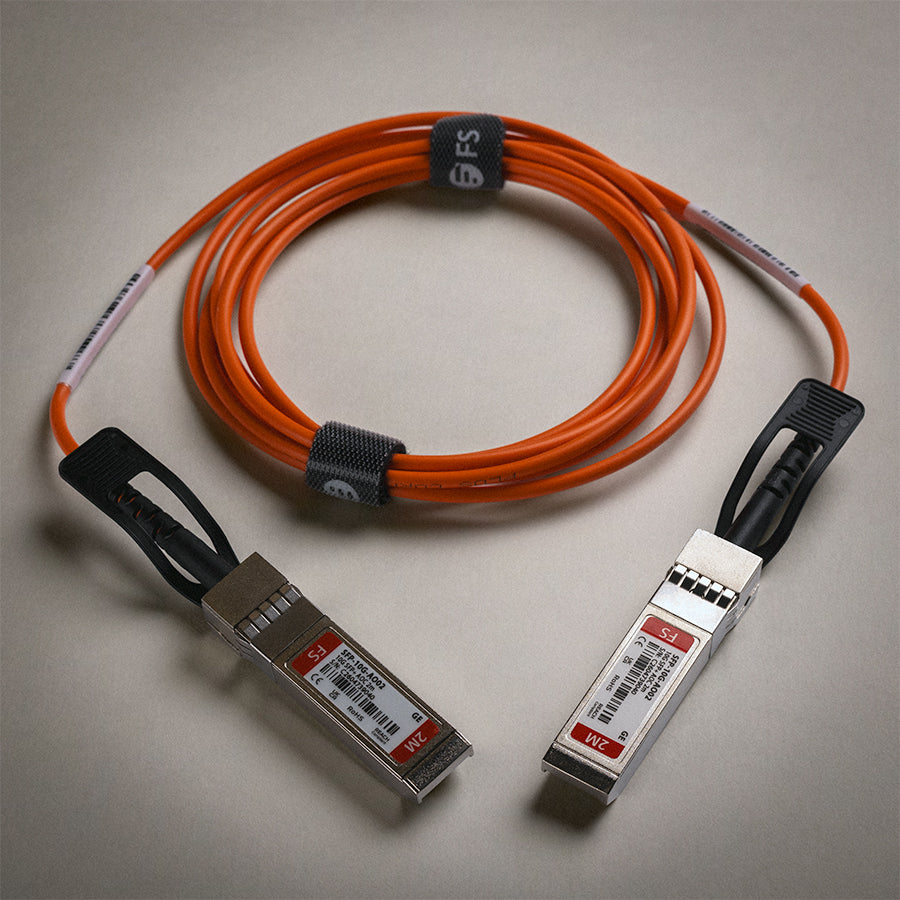

This is an upgrade to the standard duplex fiber cable that comes with all MSB fiber based products. This cable is for use with Pro ISL, Palisade Link, Cascade Link, and Sentinel Link Connections. This AOC cable replaces the standard duplex fiber cable as well as the SFP transceiver modules on either end; removing two fiber junctions by integrating the transceiver directly to the fiber cabling.

This AOC Cable replaces the stock duplex fiber cable as well as the stock SFP transceiver module at either end.

*** A note on using AOC Cables ***

Every time you remove and insert the cabling, you are wearing out a direct connection on the PCB motherboard itself. That means the wear point shifts from the removable and replaceable SFP modules to the motherboard. If worn out to an unreliable state, the motherboard will need to be replaced on both the Digital Director and Analog Converter. This will NOT be a warranty repair.

The sockets are only rated for a few hundred plug cycles. Depending on the SFP module, it could be as few as 200 to 300 insertions. For any home installation, this will not be a concern. If the system is installed and infrequently moved you will never run into this issue.

This is a severe warning for dealers, demos, and the enthusiast who wants to constantly experiment and A/B cabling in their system. It is a lot of insertions, but we want to make sure you are very aware of the potential cost when and if there is a related failure due to excessive insertions. We don’t want to scare you off from trying AOC, as the sonic benefits are well worth it for long term use.

To change out the AOC cable, simply pull on the integrated release tab. This will disengage the locking mechanism while the SFP module pulls free. When inserting a new AOC cable, simply make sure it is firmly inserted and latched in place.
